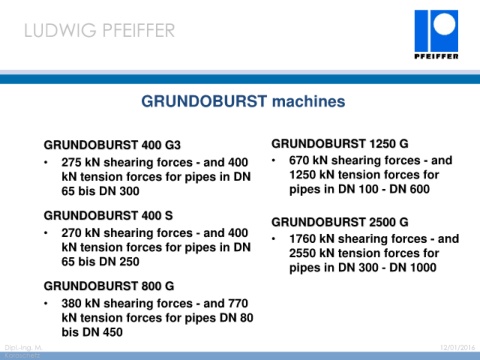

LUDWIG PFEIFFER

GRUNDOBURST machines

GRUNDOBURST 400 G3 GRUNDOBURST 1250 G

• 275 kN shearing forces - and 400 • 670 kN shearing forces - and

kN tension forces for pipes in DN 1250 kN tension forces for
65 bis DN 300 pipes in DN 100 - DN 600

GRUNDOBURST 400 S GRUNDOBURST 2500 G

• 270 kN shearing forces - and 400 • 1760 kN shearing forces - and

kN tension forces for pipes in DN 2550 kN tension forces for

65 bis DN 250 pipes in DN 300 - DN 1000

GRUNDOBURST 800 G

• 380 kN shearing forces - and 770
kN tension forces for pipes DN 80

bis DN 450

Dipl.-Ing. M. 12/01/2016
Koroschetz
